Hot-Dip Galvanized Steel Sheet: Ultimate Guide to Its Process, Advantages & Applications

Byadmin
If you’re in construction, manufacturing, or transportation, you’ve likely heard of hot-dip galvanized steel sheet. Today, we’ll break down the essentials—how it’s made, its key grades, advantages, and uses—no jargon, just practical info for buyers, contractors, and anyone curious.

What Exactly Is Hot-Dip Galvanized Steel Sheet?

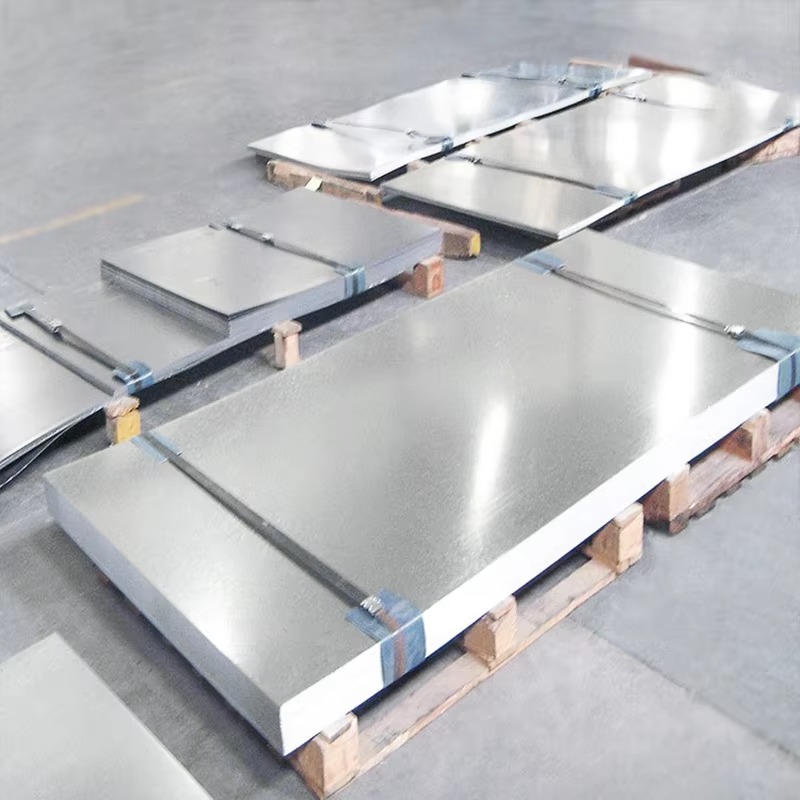

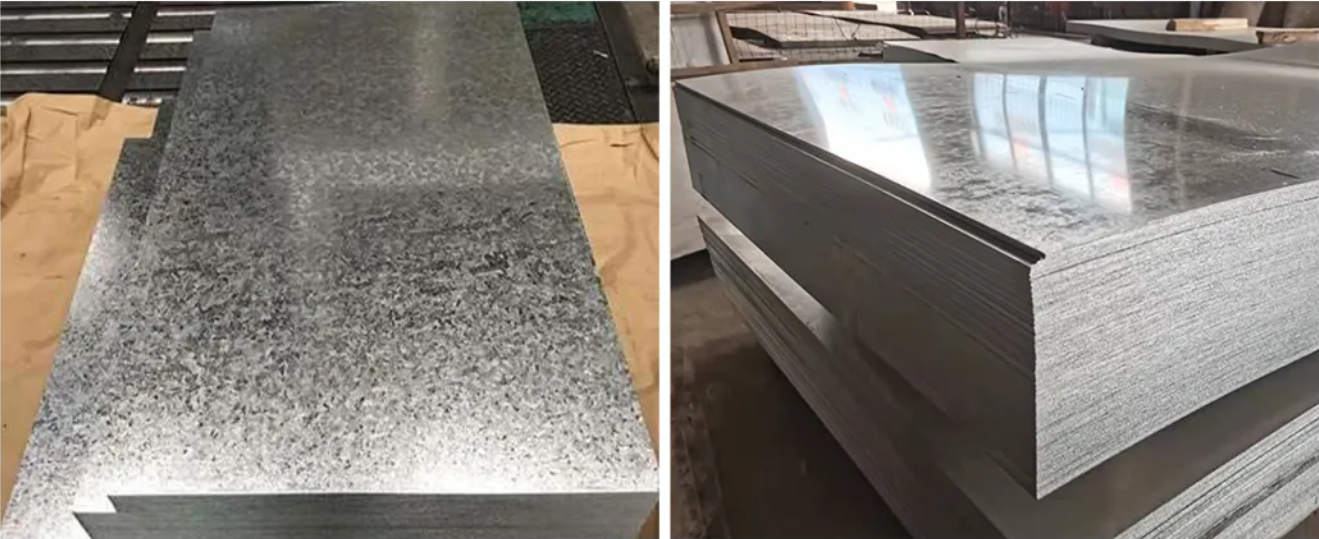

A hot-dip galvanized steel sheet is a carbon steel sheet coated with zinc via a hot-dip process. Unlike other coatings, it forms a strong metallurgical bond between zinc and steel, so the coating won’t peel easily, even in harsh conditions.
Here’s the basics: the steel is dipped into molten zinc (around 450°C) and cooled, creating a thick, uniform coating (30-275 g/m²). This makes it far more durable for outdoor/industrial use than electro galvanized (cold galvanizing) steel, which has a thin coating.

Key Grades for International Trade (How to Choose)

Choosing the right grade is critical—here are the most common standards and their top grades, tailored to global markets:
ASTM (North America/Global): ASTM A526 (general purpose, cost-effective for non-structural parts), ASTM A527 (great for bending/forming, e.g., roof panels), ASTM A446 (structural grade, high tensile strength for beams/guardrails).
DIN EN 10346 (Europe): DC51D+Z (basic grade for construction/appliances), DC53D+Z (better formability for deep-drawing parts).
JIS G3302 (Japan): SGCC (commercial grade, stable zinc coating for construction/automotive), SGLC (aluminum alloy coating, superior corrosion resistance for coastal areas).
GB/T 2518 (China, cost-effective): Q195+Z/Q235+Z (high-strength for industrial/construction), DX51D+Z (smooth surface for appliances/furniture). Choose higher zinc layers (e.g., Z275) for harsh corrosion environments.
Pro tip: Choose based on your application, target market, and corrosion conditions—this ensures durability and cost savings.

How Does the Hot-Dip Galvanizing Process Work?

The process is simple but precise, with 3 key steps:

1. Surface Preparation (Critical!)

Steel must be clean (no dirt, oil, rust) for zinc to bond. It goes through degreasing, pickling (remove rust), and fluxing (prevent re-oxidation) before dipping.

2. Hot-Dip Immersion

Clean steel is dipped into molten zinc (440-465°C). A chemical reaction forms zinc-iron alloy layers, plus a top layer of pure zinc—creating a strong bond.

3. Post-Treatment & Inspection

After cooling, the sheet is inspected for uniform coating and defects. Some get passivation treatment for extra corrosion resistance (ideal for coastal areas).

Key Advantages of Hot-Dip Galvanized Steel Sheet

  • Unbeatable Corrosion Resistance: Zinc acts as a barrier and sacrificial anode, lasting 20-30+ years outdoors (up to 50 years in mild conditions).
  • Low Maintenance & Cost-Effective: No repainting or frequent replacements—saves money long-term despite a slightly higher initial cost.
  • Strong & Durable: Handles heavy use, extreme temperatures, and harsh weather (rain, salt spray) for construction/industrial needs.
  • Versatile: Easy to cut, bend, weld, and customize (sizes, finishes like zero spangle).
  • Eco-Friendly: Zinc is 100% recyclable, and the process uses minimal energy—reduces waste from frequent replacements.

Common Applications

Hot-dip galvanized steel sheet is versatile, used in:
  • Construction: Roofing, wall cladding, steel structures, purlins (warehouses, factories).
  • Transportation: Highway guardrails, shipping containers, truck bodies, traffic poles.
  • Home Appliances/Furniture: Appliance housings, outdoor patio sets, indoor fixtures.
  • Agriculture: Barns, greenhouses, livestock enclosures, irrigation systems.
  • Industrial Equipment: Equipment enclosures, pipes, storage tanks (factories, refineries).

Hot-Dip vs. Electro Galvanized Steel

Don’t mix these up—here’s the key difference:
Hot-dip: Thick coating (30-275 g/m²), durable (20-30+ years), ideal for outdoor/heavy-duty use.
Electro galvanized: Thin coating (3-20 g/m²), cheaper, smoother, but only lasts 5-10 years (best for indoor use).

Final Thoughts

If you need a strong, corrosion-resistant, low-maintenance material for outdoor/heavy-duty projects, hot-dip galvanized steel sheet is a no-brainer. With customizable sizes, finishes, and global grades (ASTM, DIN, JIS, GB), it fits nearly any project.
Ready to learn more? Contact us for a quote or expert advice—we’ll help you choose the perfect fit for your business!
